Powder testing: Vessel material as a diagnostic tool

When the same powder gives different results in different vessel materials, that difference is not test error. It is diagnostic information about how the powder will behave in your equipment.

The standard assumption - and why it is wrong

The instinctive response to getting different results from the same powder in different vessel materials is to treat the difference as a source of error - to ask which result is correct, and to choose one vessel for all future testing.

This response reflects a model of powder testing in which the instrument is a passive observer and the result reflects an intrinsic property of the powder. For many measurement types, this model is appropriate. For powder flow measurement, it is not - because powder flow behaviour is not an intrinsic property. It is a system response that depends on the powder, the geometry, and the surface it contacts. Changing the vessel material changes the boundary conditions of the test. The resulting change in measured behaviour is not noise. It is signal.

What changes between the two vessel materials

Glass and split aluminium vessels differ in several properties that are relevant to powder-wall interaction:

How to interpret differences - four real examples

Baby powder - small vessel effect, bulk-controlled behaviour

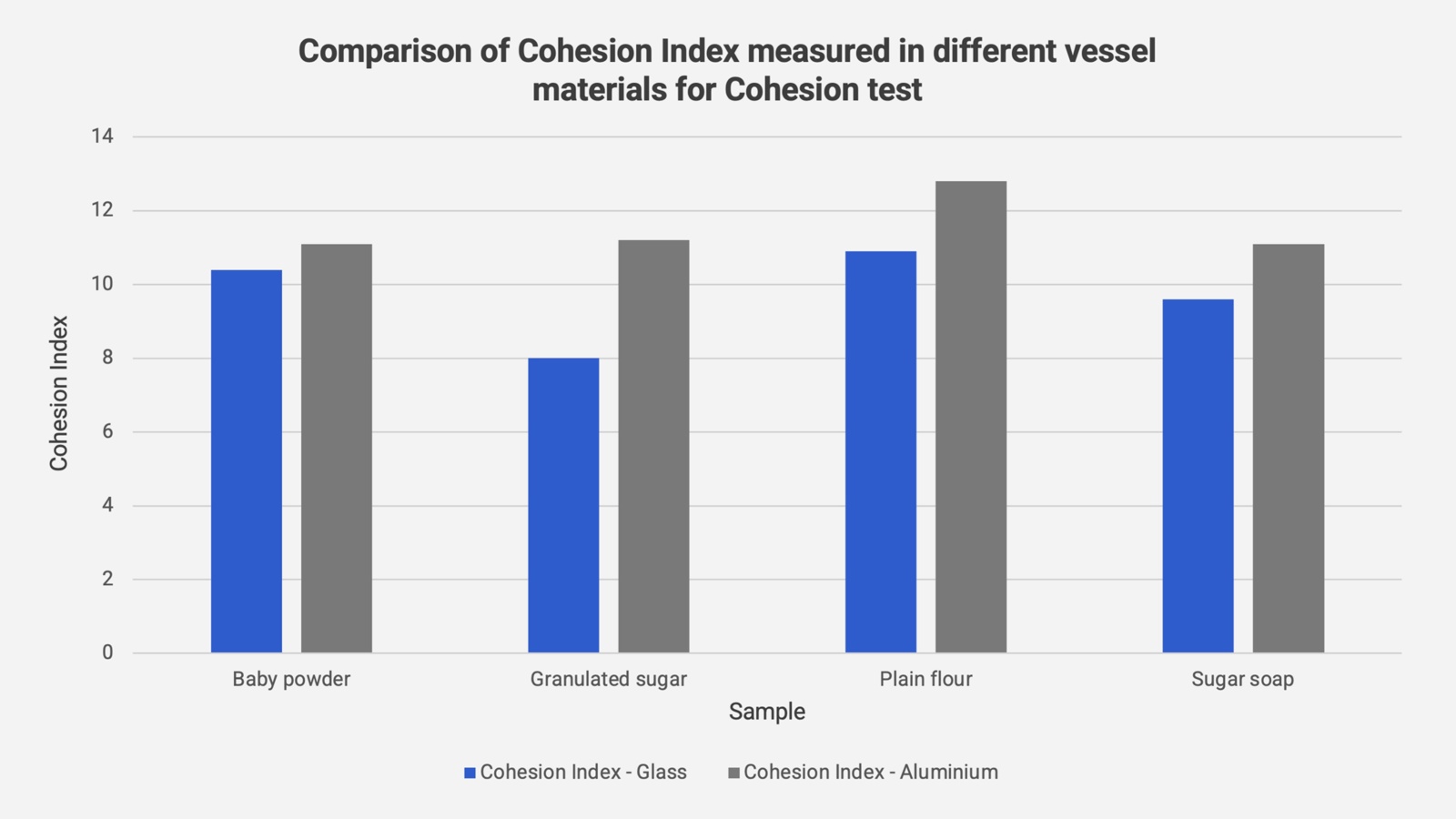

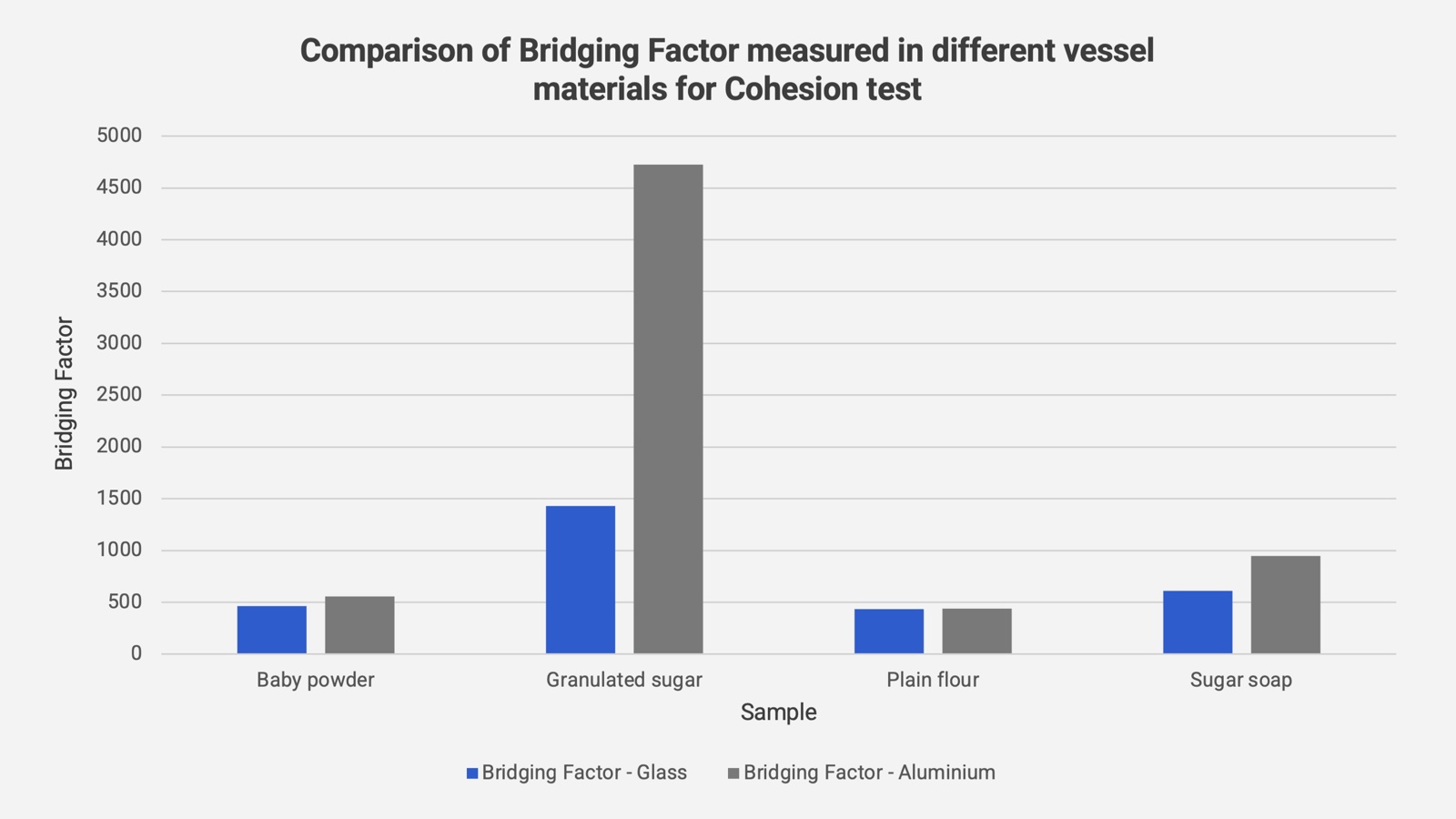

Baby powder is a fine, cohesive material with relatively uniform particle size. Its Cohesion Index is broadly similar in glass and aluminium, with only a modest increase in Bridging Factor in the aluminium vessel. The small vessel effect indicates that resistance to flow is dominated by particle-particle interactions rather than particle-wall interactions.

What this means in practice: baby powder behaviour is largely independent of the wall material it contacts. Flow problems, if they occur, are driven by cohesion - and will respond to flow aids, surface treatment, or humidity control rather than to equipment surface changes. Liner selection and wall finish are unlikely to be critical variables for this material.

Granulated sugar - large Bridging Factor effect, geometry-dependent behaviour

Granulated sugar shows a noticeably higher Cohesion Index in aluminium than in glass, and a very large increase in Bridging Factor. The material is not highly cohesive in the conventional sense - it does not feel sticky, and its particle-particle adhesion is moderate but it is prone to structural interlocking and force-chain formation, and these structures interact strongly with the wall.

The aluminium vessel amplifies these effects through higher effective wall friction, producing much stronger and more irregular arching behaviour. The glass vessel, being smoother and less frictional, suppresses some of this instability.

What this means in practice: granulated sugar is geometry- and wall-dependent. A hopper that discharges well with a smooth polymer liner may cause repeated blockages with a rough stainless steel surface. Bridging risk is structural, not cohesive - and will not respond to flow aids. Hopper geometry, outlet sizing, and wall specification are the variables that matter.

Plain flour - negligible vessel effect, bulk-controlled behaviour

Plain flour shows very similar Cohesion Index and Bridging Factor results in both vessels. Its behaviour is dominated by bulk particle-particle interactions, and the wall makes little contribution to the measured resistance. This indicates robust behaviour across a range of equipment surface conditions.

What this means in practice: flow problems with flour, if they occur, are unlikely to be resolved by changing equipment surface material. The dominant variables are environmental - humidity, consolidation history, and handling. The absence of a vessel effect is itself diagnostic: it directs the investigation towards formulation, environment, and process conditions rather than equipment design.

Sugar soap - moderate vessel effect, boundary-sensitive behaviour

Sugar soap powder shows a moderate increase in Cohesion Index and a clear increase in Bridging Factor in aluminium. The material has irregular particle shapes and surface-treated chemistry, making it sensitive to both cohesive and structural effects. Neither mechanism clearly dominates.

What this means in practice: sugar soap sits at the boundary between cohesive and structural behaviour. Its performance will vary across different equipment configurations. This is precisely the type of material for which dual-vessel testing provides the most value - because a single-vessel result gives an incomplete picture of a powder that is inherently boundary-sensitive.

A framework for interpreting vessel effects

Practical guidance on vessel selection

For routine QC and trending

Choose one vessel material and use it consistently. Do not mix vessel materials within a specification or across a data set. Aluminium is often preferred for industrial applications because it more closely represents the metallic surfaces of typical process equipment. Glass is preferred when visual observation of powder behaviour during testing is important, or when the application involves polymer-lined or coated equipment.

For troubleshooting and process understanding

Test in both vessels whenever behaviour is poorly understood or when production performance is inconsistent. The difference between the two results is at least as informative as either result individually. A material that shows large vessel effects should be tested specifically in the vessel material that most closely represents the production equipment surface - whether that is a metallic hopper, a polymer liner, or a coated surface.

For equipment specification and liner selection

When specifying hopper liners, wall coatings, or surface finishes for a new process, dual-vessel testing provides direct evidence of whether wall material is a critical variable for the specific powder. If the vessel effect is large, the choice of liner material is a process-critical decision. If the vessel effect is small, other variables dominate and liner selection can be made on practical grounds.
