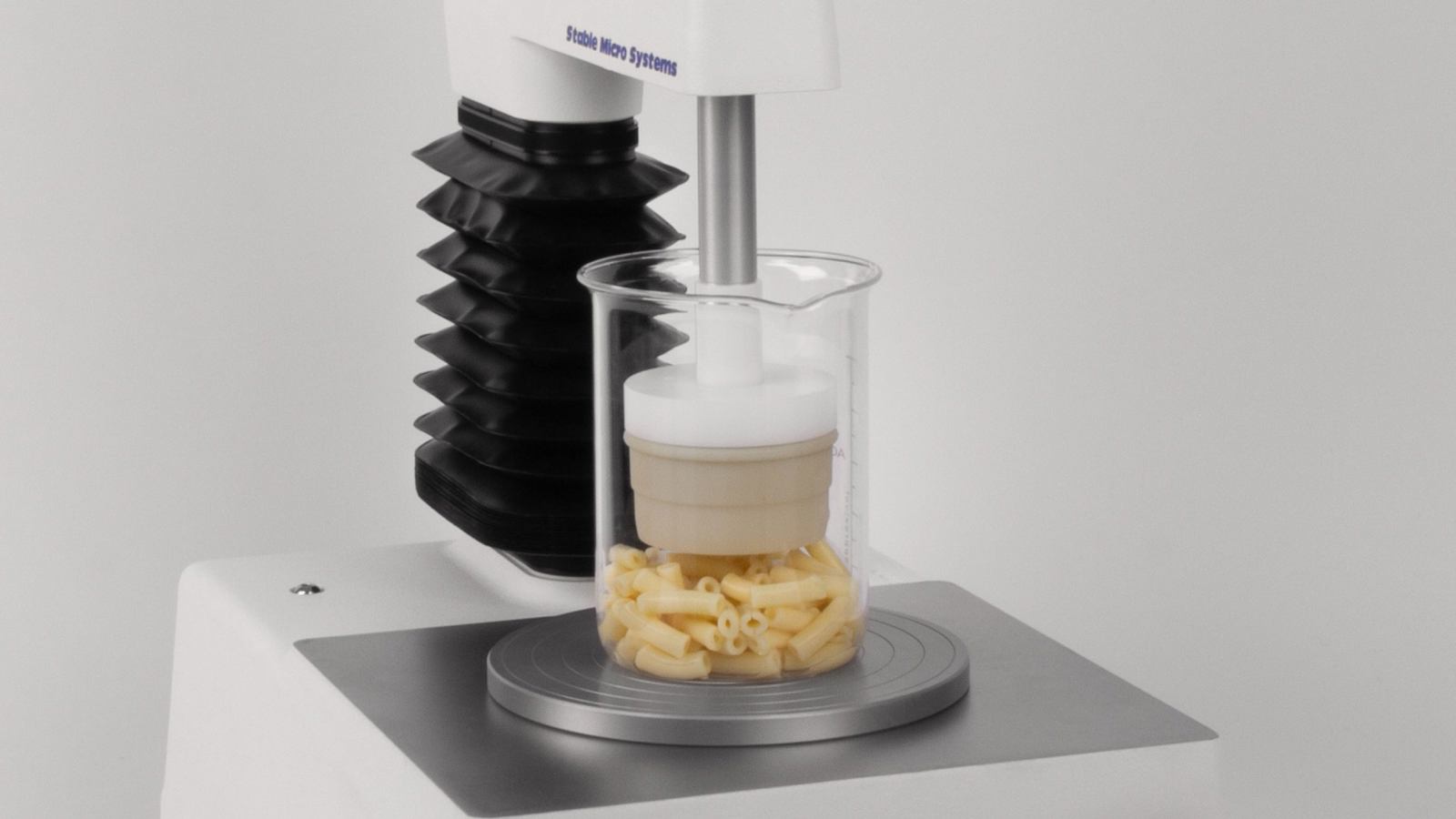

New texture analysis device: The Triple Ring Cutting System

Bulk testing can now be performed with a Triple Ring Cutting System which allows the determination of the textural properties of small non-uniform samples in smaller quantities.

The design of the test head is based around a cutting array of concentric rings which provides a large cutting surface area in a relatively small device. This enables the testing of a monolayer of sample in a 95mm diameter vessel – a suitable choice to contain the sample to an optimum depth for cutting.

The concentric rings cut into the sample during a test (to a chosen distance above the vessel base) and force the sample to breakdown whereby the force during this procedure is gathered. The higher the maximum force and area under the curve the firmer is the sample which would be perceived by the consumer upon eating. A centralising platform ensures the test vessel can be quickly located in the ideal test position whilst a magnetic coupling of the test head allows for quick removal and replacement between tests for cleaning.

This magnetic quick removal system is the first of its kind in texture analysis and supports the need for test procedures that have efficiency in mind. The cutting rings on the device are also removable for easy cleaning once all tests are complete.

The Triple Ring Cutting System is a Registered Community Design and is a continuation of the ever increasing range of innovative solutions for texture analysis.
