Sticky standards for your adhesive tape testing

Adhesiveness, tack and surface stickiness are critical functional properties for a wide range of pressure-sensitive adhesive (PSA) products, including sealing tapes, medical plasters, pharmaceutical labels and packaging laminates. These properties directly influence perceived product quality, application reliability and long-term bond performance.

Adhesive behaviour is strongly dependent on environmental and material variables such as temperature, substrate surface energy, liner material, moisture exposure and repeated loading or removal cycles. From a formulation and manufacturing perspective, the challenge is therefore to engineer an adhesive system whose rheological and interfacial characteristics align with the intended application conditions.

Instrumented testing methods are essential in this context. They enable developers and quality-control laboratories to quantify adhesive performance, detect subtle differences between formulations, and verify that production batches conform to defined specifications.

Role of instrumental measurement in adhesive development

Mechanical testing of adhesive systems provides quantitative insight into interfacial bonding and failure behaviour. Measurements allow comparison between:

• Different polymer formulations and additive packages

• Variations in coating thickness and backing materials

• Processing conditions during tape manufacture

• Manufacturing consistency between batches, shifts and production sites

By capturing force-displacement or stress-strain data using a Texture Analyser during controlled loading and separation, these tests reveal differences in adhesive rheology, viscoelastic response and debonding mechanisms that would be difficult to detect using subjective evaluation alone.

Standardised adhesive test methods

A number of internationally recognised standards define testing procedures for pressure-sensitive adhesive tapes. These include methods developed by FINAT (Fédération Internationale des Fabricants et Transformateurs d'Adhésifs et Thermocollants sur Papiers et autres Supports), AFERA (Association des Fabricants Européens de Rubans Auto-Adhésifs), PSTC (Pressure Sensitive Tape Council) and ASTM.

These standards typically require a tensile testing instrument capable of applying controlled displacement and measuring the resulting force response. Modern texture analysers can replicate these mechanical loading conditions and integrate standardised methods directly within the analysis software to automate test execution and data interpretation.

Measurement of tack

Tack refers to the ability of an adhesive to form an instantaneous bond with a substrate under light contact pressure. It is often the primary determinant of initial bond formation for pressure-sensitive adhesives.

Two commonly used approaches for tack measurement are:

Loop tack test

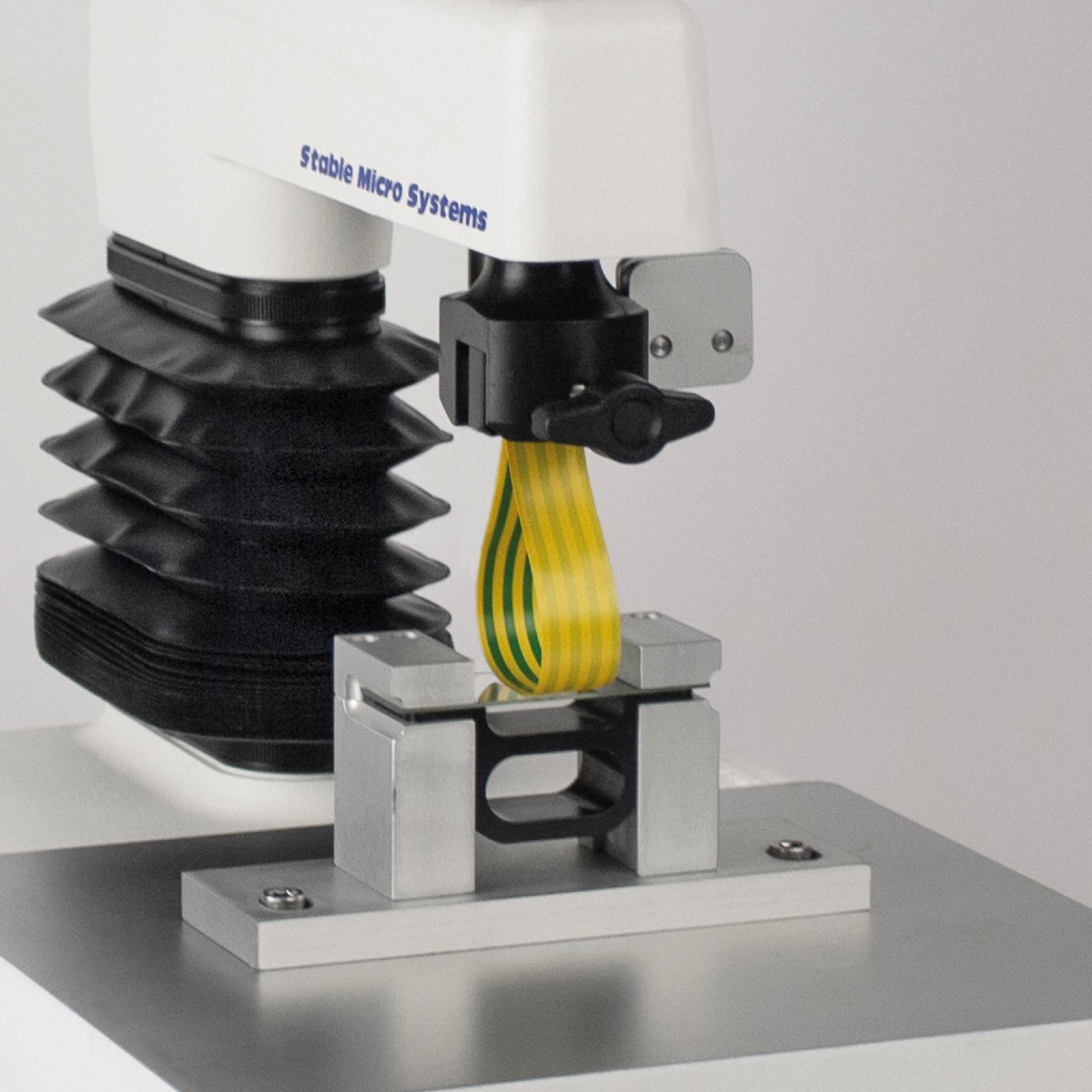

In the loop tack configuration, a loop of adhesive tape is brought into contact with a test substrate and then immediately withdrawn. The peak force required to separate the adhesive from the surface represents the instantaneous adhesion strength.

Probe tack test

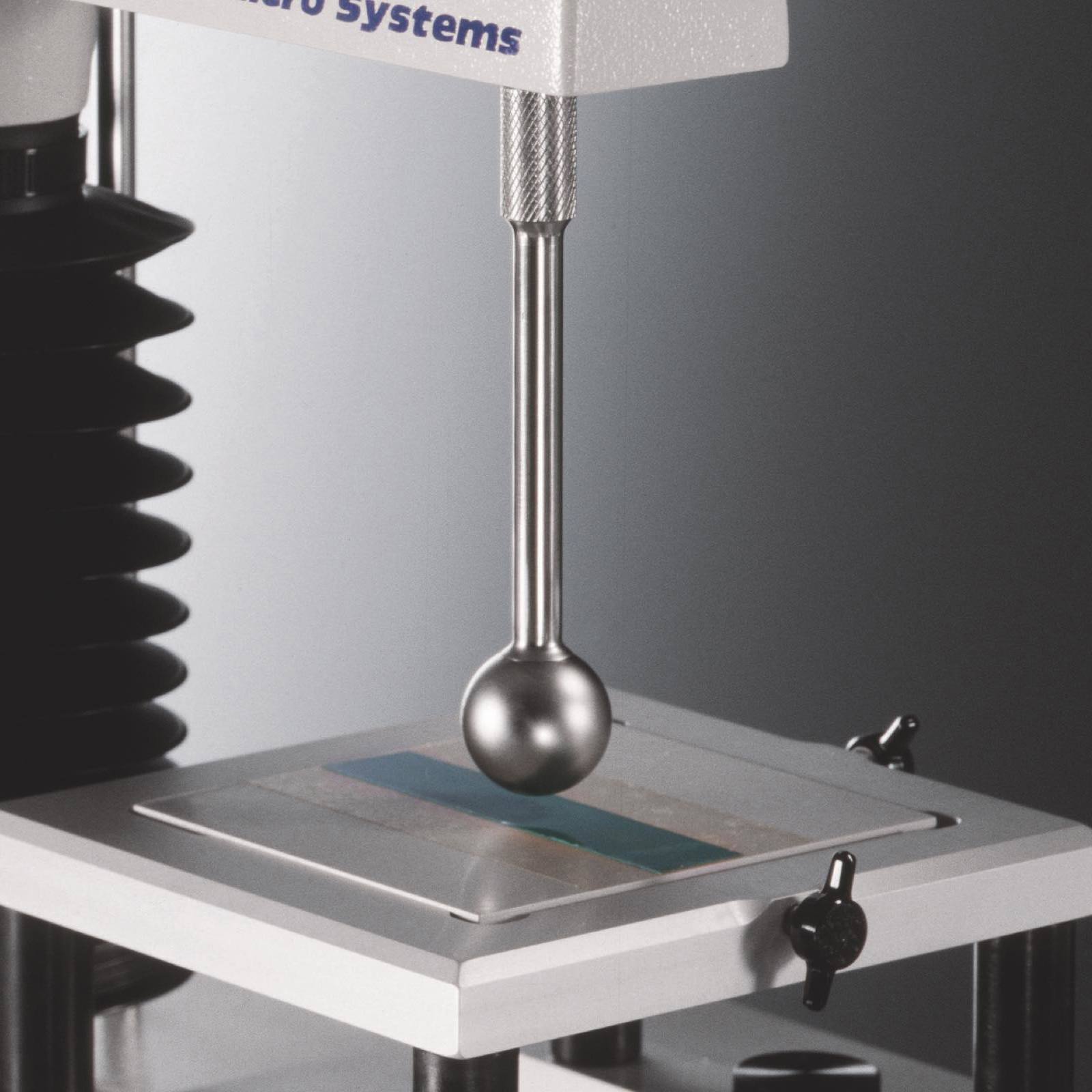

Probe tack testing uses a defined probe geometry, commonly stainless steel, to contact the adhesive surface under controlled pressure and dwell time. The force required to detach the probe from the adhesive is recorded as a function of time and displacement. The resulting force-distance curve provides information on debonding strength and viscoelastic behaviour during separation.

These measurements provide insight into adhesive wetting behaviour and the rate at which molecular contact develops at the adhesive-substrate interface.

Representative standard methods

Several specific test standards are frequently applied when characterising adhesive tapes.

FINAT 2 - 90° Peel adhesion

FINAT 2 specifies a 90° peel adhesion test conducted at a crosshead speed of 300 mm/min. The method allows comparison of adhesive performance, including repositionability of laminates.

Adhesion is typically measured after two dwell periods:

• 20 minutes after application, representing short-term adhesion

• 24 hours after application, representing ultimate bond strength

Results are reported as the average peel force for multiple test strips, typically expressed in Newtons per 25 mm tape width.

Testing at a 90° peel angle often produces lower measured forces than 180° peel configurations and can be advantageous when evaluating materials prone to substrate tearing.

The method can also be adapted for additional environmental conditions, including:

• FINAT 5: elevated temperature testing

• FINAT 6: ultraviolet exposure conditions

AFERA 4015 - Quick stick

AFERA 4015 measures the ability of adhesive tape to bond to a surface under minimal applied pressure. The test captures the initial adhesion performance immediately following contact.

For each specimen, force measurements are recorded across five intervals. The median value is determined, and a second median is calculated across multiple specimens to obtain the final result. Adhesion values are reported in Newtons per centimetre of tape width.

This approach reduces the influence of outliers and provides a robust estimate of quick-stick performance.

AFERA 5001 - Test method F

AFERA 5001 Method F evaluates the peel adhesion of single-coated adhesive tapes from stainless steel panels or from their own backing material.

The method can be used to compare the relative bonding performance of a tape across different substrates by replacing the standard steel panel with representative materials such as plastics, films or coated surfaces.

However, this method is not suitable for comparing tapes from different manufacturers when adhesive stiffness and backing rigidity differ significantly. In such cases, the stress distribution during peeling varies because the loaded area is not normalised. Mechanical properties such as backing modulus and adhesive rheology therefore influence the measured peel force.

Alternative adhesive test configurations

While standardised peel and tack tests are widely used, additional mechanical tests can provide further insight into adhesive performance.

A Texture Analyser equipped with appropriate fixtures can perform several alternative evaluations, including:

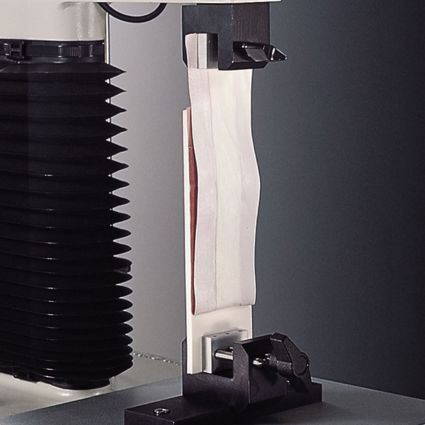

• 180° peel testing, commonly applied in packaging applications

• T-peel testing, used for flexible laminate bonds

• drum peel testing, applicable to bonded structural laminates

• tensile testing of adhesive joints

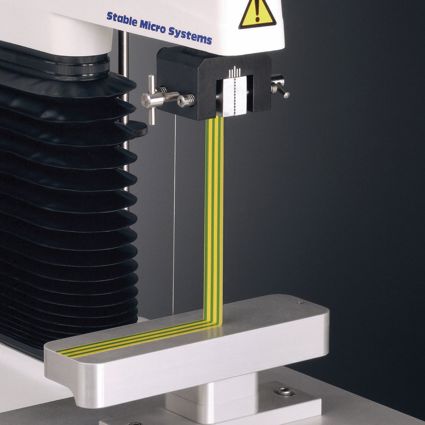

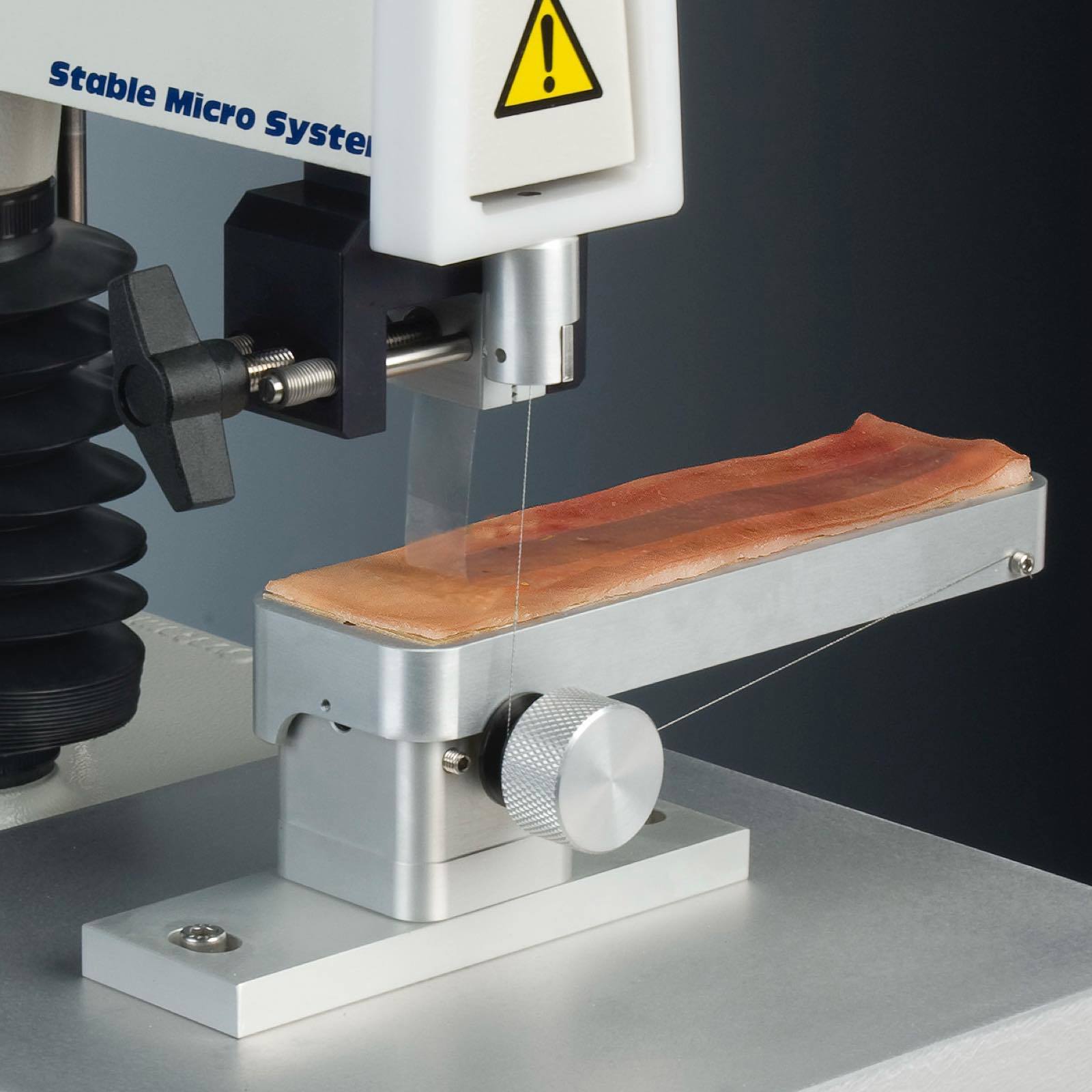

Specialised fixtures such as peel strength rigs allow controlled test geometry, while adhesive indexing systems enable repeated measurements across a single sample. This can reveal spatial variability within coated materials and help predict real-world performance.

Data interpretation and material characterisation

Modern Texture Analysers capture high-resolution force-distance data during testing, producing real-time graphical outputs. These curves allow detailed examination of:

• Peak adhesion force

• Energy required for debonding

• Viscoelastic deformation during separation

• Failure modes such as adhesive failure, cohesive failure or substrate failure

From a materials science perspective, these parameters relate directly to the molecular structure and viscoelastic behaviour of the adhesive polymer network.

Applications

Instrumented adhesive testing is widely applied across industries that rely on pressure-sensitive bonding technologies. Typical products evaluated include:

• Pressure-sensitive tapes (packaging, electrical, duct, masking, foam-backed)

• Pharmaceutical and medical plasters

• Transdermal drug delivery patches

• Industrial adhesives and glues

• Hot-melt adhesives

• Sealants, caulks and resins

• Coatings, inks and paints

• Silicone and cosmetic gels

• Solder pastes and electronic assembly materials

Implications for manufacturing and quality control

Objective mechanical testing enables manufacturers to control critical adhesive properties that are otherwise difficult to quantify reliably. By establishing repeatable test protocols and measurable performance thresholds, manufacturers can ensure product consistency, optimise formulations and reduce variability across production lines.

Ultimately, combining instrumental analysis with application-specific testing provides a robust framework for developing adhesive systems that meet both technical performance requirements and user expectations.
