Dynamic powder flow: How instruments differ

The PFA and rotational powder rheometers both measure dynamic powder behaviour - but they measure it differently, under different conditions, and the results describe different aspects of powder handling. This article explains the design philosophy behind each approach.

Two approaches to dynamic powder measurement

The development of dynamic powder flow instruments over the past two decades has produced two broad families of measurement approach. Both improve substantially on static methods such as Carr's Index and angle of repose by measuring powders under conditions that more closely reflect processing environments. They differ in the specific conditions they replicate, the parameters they produce, and the questions they are best suited to answer.

Understanding these differences helps laboratories select the right instrument for their specific application - or to understand what each instrument in their existing equipment set is telling them.

The rotational rheometer approach

Rotational powder rheometers - of which the Freeman Technology FT4 is the most widely known example - measure powder flow properties by rotating a blade through a powder bed at controlled speed and axial displacement. The instrument measures the forces and torques required to move the blade, from which flow energy parameters are derived.

The primary output is flow energy - the total work required to move the blade through the powder bed under defined conditions of rotation and vertical displacement. This can be measured in multiple modes: basic flow energy (downward blade movement, compacting action), specific energy (upward blade movement, lifting action), compressibility, permeability, and shear cell measurements.

The rotational rheometer approach is particularly well-suited to:

•     Measuring absolute flow energy values that can be used in process scale-up calculations

•     Permeability measurements - how readily air passes through the powder bed - which is relevant to fluidised bed and pneumatic conveying processes

•     Shear cell measurements for Mohr-Coulomb failure analysis and hopper design calculations

•     Applications where fundamental rheological parameters are required for modelling

The controlled blade displacement approach - the PFA

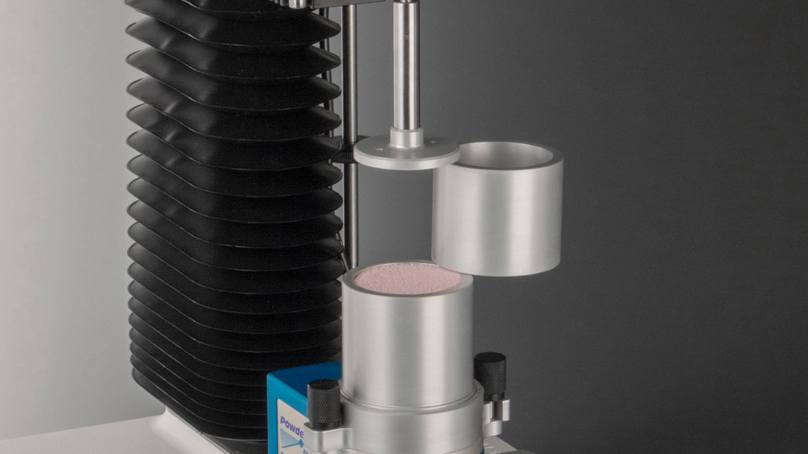

The Powder Flow Analyser uses a different measurement principle. Rather than measuring total flow energy during continuous rotation, it measures the force response of the powder bed to a precisely defined sequence of blade movements - conditioning cycles followed by test cycles at defined path angles, speeds, and displacement profiles.

The PFA blade path angle is a critical variable. At a shallow path angle (approximately 10 degrees from horizontal), the blade compacts the powder during the downward stroke and lifts it during the upward stroke. The upward stroke - the lifting phase - is the primary measurement phase for cohesion characterisation. The character of the force trace during this lifting phase distinguishes cohesive bonding (smooth, large negative force) from structural arching (irregular, jagged, with transient peaks).

This distinction - captured in the Bridging Factor - is the most operationally specific parameter produced by either instrument family. It separates two failure modes that have completely different root causes and require completely different interventions. No equivalent parameter exists in the rotational rheometer output.

A comparison of the two approaches

Which approach for which application

The two approaches are complementary rather than directly competitive. The choice depends on the specific production questions being asked and the level of mechanistic detail required.

The PFA is particularly well-suited when:

•     The failure mode - cohesive versus structural - needs to be distinguished, because the intervention differs completely between the two.

•     Caking and post-storage restart behaviour are primary concerns - the dedicated caking and consolidation test protocols provide direct answers.

•     Mechanical characterisation of the same powder (compaction strength, cake break force, granule hardness) is also needed - available from the same instrument platform.

•     Multi-parameter comparison across batches, suppliers, and formulations for QC purposes - the pre-configured projects and spreadsheet outputs are designed for this workflow.

•     The application is in food, cosmetics, or agricultural sectors, where the Bridging Factor and speed-dependent parameters have direct operational significance.

Rotational rheometry is particularly well-suited when:

•     Fundamental rheological parameters for process modelling are required.

•     Permeability measurements are needed - for fluidised bed characterisation or pneumatic conveying design.

•     Mohr-Coulomb shear analysis for hopper design calculations is the primary requirement.

•     The application is in pharmaceutical development where flow energy values and compressibility are established characterisation parameters in regulatory submissions.
