Compressibility: Explaining powder property changes after storage

Compressibility is the least discussed of the core PFA parameters - but it is the one that explains a specific class of production problems that cohesion and caking tests cannot. This article explains what it measures and when it is the most important test to run.

What compressibility is - and what it is not

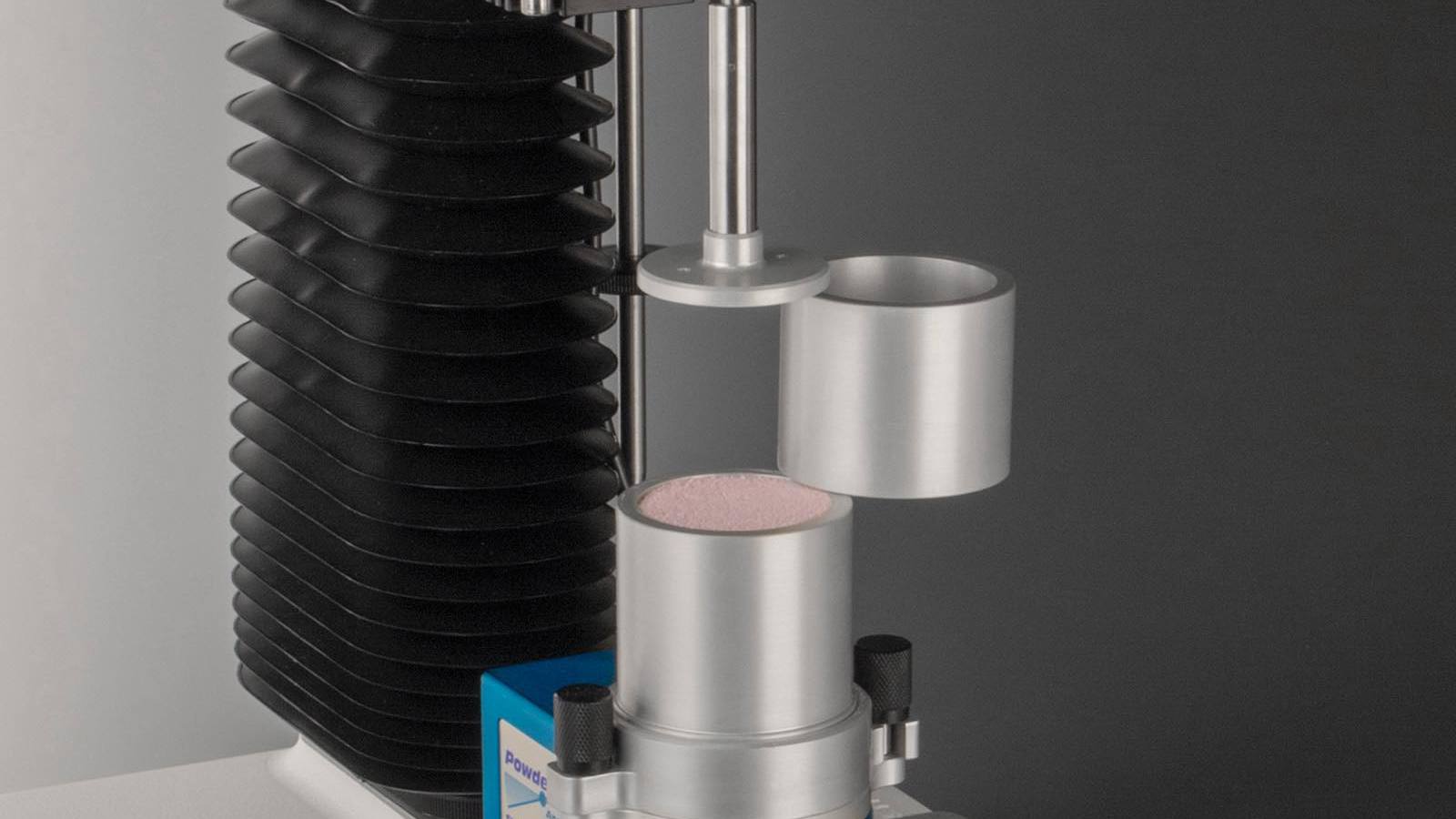

Compressibility, as measured by the PFA, is the stress-dependent packing response of a powder - the profile of how the powder bed height changes as applied normal force increases, and how that height changes when the force is removed. It is a dynamic, continuous measurement that produces a curve rather than a single number.

This is fundamentally different from Carr's Index or Hausner ratio. Carr's Index measures a single compression event - the change in volume from poured to tapped - using a standardised tapping procedure at a single effective stress. PFA compressibility measures the response across a range of applied stresses under controlled conditions, separating the loading behaviour from the hold behaviour (relaxation) and the unloading behaviour (elastic recovery). The result is not a classification number but a mechanistic description of how the powder responds to applied load.

The four parameters and what they reveal

% Compressibility

The percentage reduction in powder bed height at a defined applied normal stress. High compressibility means the powder packs readily under load - relevant to filling heads, hoppers under self-weight, and storage under stacking loads. Low compressibility means the powder is relatively resistant to densification.

On its own, compressibility tells you how much the powder packs. The other three parameters tell you how that packing behaviour matters.

Stiffness

The slope of the force-displacement curve during loading - how much force is required to achieve a given degree of compression. A stiff powder bed resists deformation; a compliant powder bed yields readily under load.

Stiffness is relevant to filling head design and to the behaviour of powders in confined geometries. A powder with low stiffness will densify significantly under the pressure of the fill head - and that densification may change the fill weight independently of any flow behaviour changes.

Relaxation

The change in powder bed height during a sustained hold at constant applied force. High relaxation means the powder continues to compact under sustained load - particles are still rearranging even after the initial compression event. Low relaxation means the packing state is largely established immediately on loading.

Relaxation is directly relevant to time-dependent storage behaviour. A powder with high relaxation will consolidate progressively during storage under a fixed column load - not reaching its final packing state until hours or days after initial loading. This is one mechanism by which powders that discharge cleanly immediately after filling become more difficult to discharge after extended storage.

Elastic Recovery

The percentage of the total compression that is recovered when the applied load is removed. Low elastic recovery means most of the compression is permanent - the powder does not spring back when the load is removed. High elastic recovery means the compression is substantially reversible.

Elastic recovery is the parameter most directly relevant to transport-induced behaviour change. A powder with low elastic recovery will densify permanently during the vibration loads of road or sea transport and will not recover its original packing state when the load is removed. A powder with high elastic recovery is more resilient to transport - it deforms under load but recovers.

The three scenarios where compressibility is the most important test

Scenario 1: Filling performance changes with head load

In gravimetric or volumetric filling systems, the powder in the feed hopper sits under a column of material above it. As the hopper empties, the head load decreases. If the powder is compressible, its packing state changes as the head load changes - and this changes the apparent bulk density and therefore the fill volume.

The result is a characteristic fill weight profile that is reproducible but systematic: fill weights are different at the start of a hopper cycle (high head load, dense packing) compared to near the end (low head load, looser packing). This variation is not random - it is mechanistic, and it is directly predicted by the compressibility profile.

Powders with high compressibility and low elastic recovery show the most severe version of this effect. Powders with low compressibility or high elastic recovery are more robust to head load variation.

Scenario 2: Behaviour changes after road or sea transport

During transport, powders experience vibration loads that drive particle rearrangement and densification. The effective stress experienced during road transport has been estimated in the range of 0.5 to 5 kPa depending on surface quality and vehicle suspension. Sea freight in containers experiences similar or higher effective stresses over longer periods.

A powder characterised in the laboratory before dispatch and measured again on receipt may show substantially different bulk density, different flow resistance, and different hopper performance - not because the material has changed, but because its packing state has changed. The compressibility profile predicts how susceptible a powder is to this effect: high compressibility with low elastic recovery identifies the highest-risk materials.

This is also the reason why powders that discharge well at the supplier's site can perform poorly at the customer's site - and why a single laboratory characterisation before shipment may not represent the material as received.

Scenario 3: Tablet or capsule filling performance

In pharmaceutical manufacturing, the compressibility of a powder blend directly affects die filling behaviour. A highly compressible blend will densify under the pressure of the filling system, producing variable fill weights as the packing state changes during the filling cycle. The elastic recovery parameter is particularly relevant to capsule filling - a blend with high elastic recovery may expand after the capsule body is filled, creating cap-locking difficulties or weight variation.

PFA compressibility complements tablet press data by providing a dynamic, continuous packing profile across a range of stresses - allowing the filling head pressure to be matched to the compressibility curve of the specific blend, rather than relying on general rules of thumb.
