Vessel material options
How glass and aluminium vessels reveal whether powder behaviour is bulk-controlled or boundary-sensitive.
Why does vessel material matter in powder flow testing?
Powder flow behaviour is influenced not only by how particles interact with each other, but also by how they interact with surrounding surfaces. The Powder Flow Analyser (PFA) offers two vessel materials – glass and split aluminium – precisely because this distinction matters. Each creates different boundary conditions, and when the same powder gives different results in different vessels, that difference is diagnostic information, not test error.

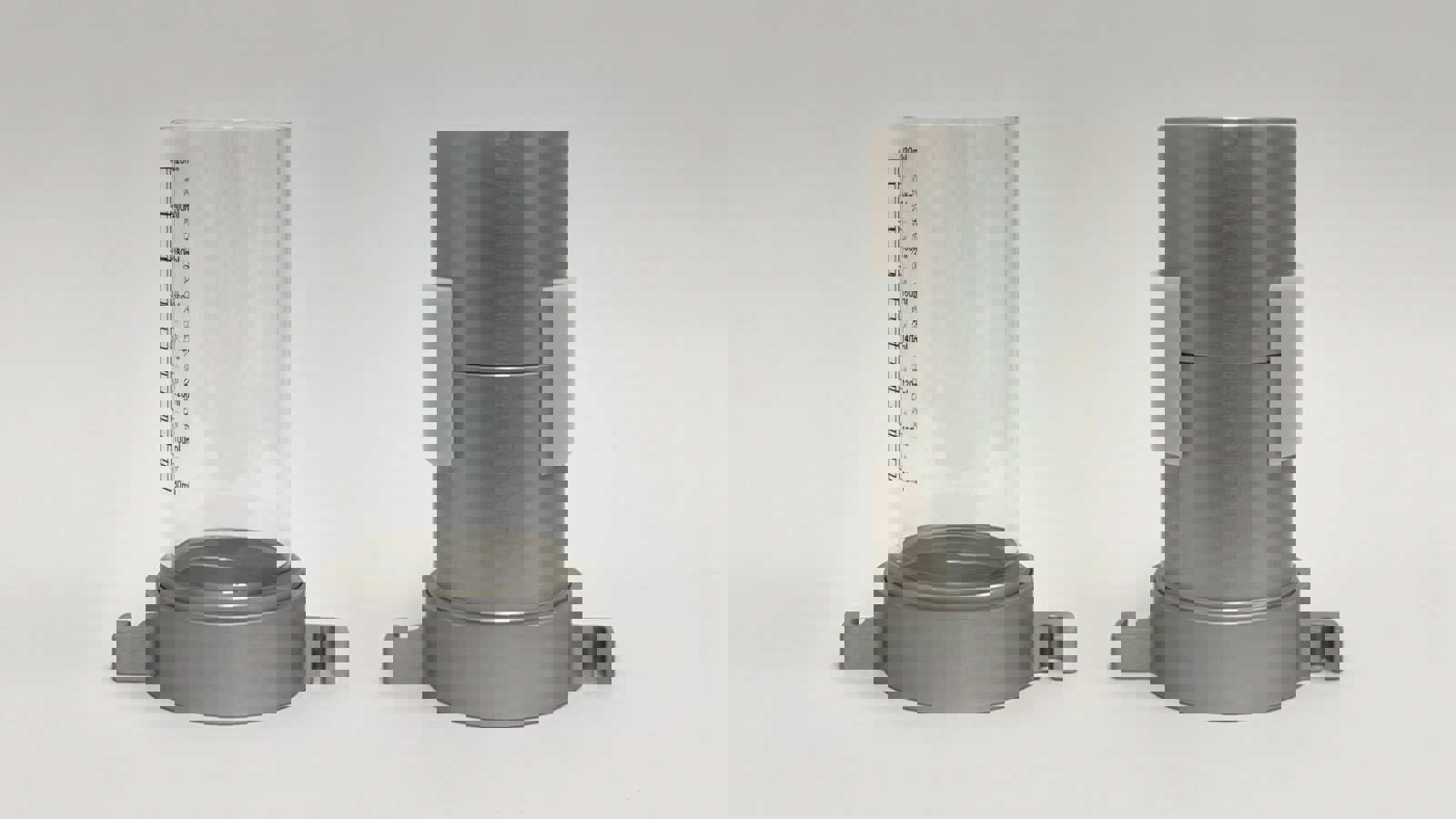

Vessel choices because different boundary conditions offer different insights
Available vessel options
Glass vessel
Best for:
- Rapid screening and comparison
- Visual observation of powder behaviour
- Assessing cohesive or electrostatic-sensitive fines
Key characteristics:
- Smooth, inert surface
- Electrically insulating
- Clear visibility of powder movement
Aluminium split vessel
Best for:
- Industrially representative testing
- Bulk density measurement
- Evaluating wall-friction and structure-driven behaviour
Key characteristics:
- Conductive metallic surface
- Enables conditioned bulk density measurement
- Representative of many hoppers, feeders and chutes
| If vessel material changes the result, equipment material will matter in the process. |
Why can results differ between vessel materials?
When a powder is tested in the PFA, the measured response includes:
- Particle-particle interactions (bulk behaviour)
- Particle-wall interactions (boundary behaviour)
Changing the vessel material alters boundary conditions such as:
- Surface energy
- Electrical conductivity
- Wall friction
- Force-chain termination at the wall
As a result, measured parameters may change even though the powder itself has not.
Differences between vessels do not mean one result is "right" and the other "wrong".
They indicate whether powder behaviour is:
- Bulk-controlled, or
- Boundary-sensitive
This distinction is highly relevant to real processing equipment.
Which parameters are most sensitive to vessel material?
|
Test parameter |
Sensitivity to vessel material |
Why |
|
Cohesion Index (CI) |
High |
Includes near-wall resistance |
|
Bridging Factor |
Very High |
Structural failure depends on wall interaction |
|
Cohesion (4 Speeds) |
Moderate-High |
Absolute values influenced by boundary effects |
|
PFSD metrics |
Low-Moderate |
Bulk speed response dominates |
|
Caking / Consolidation |
Low |
Load and time dominate |
|
Compressibility |
Very Low |
Normal stress response |
|
Bulk Density |
Low |
Mainly preparation-controlled |
Example insights by material
What vessel effects reveal for different powders.
Comparison of Cohesion Index measured in different vessel materials for Cohesion test
Comparison of Bridging Factor measured in different vessel materials for Cohesion test
The graphs show that both Cohesion Index (CI) and Bridging Factor can vary when the same powder is tested in glass versus aluminium vessels. This behaviour is expected for many powders and reflects differences in powder-wall interactions, not changes in the intrinsic powder itself.
The Powder Flow Analyser measures resistance to controlled flow within a confined vessel. As a result, the measured response includes contributions from:
- particle-particle interactions (bulk behaviour), and
- particle-wall interactions (boundary behaviour).
Changing the vessel material alters surface properties such as electrical conductivity, surface energy, and effective wall friction, which can influence how resistance is transmitted through the powder bed.
Making sense of vessel effects by sample
Baby powder
Observation:
- Small difference in Cohesion Index between glass and aluminium
- Modest increase in Bridging Factor in aluminium
Explanation:
Baby powder is a fine, cohesive material with relatively uniform particle size and shape. Its resistance to flow is dominated by particle-particle interactions rather than strong structural arching. As a result, Cohesion Index is broadly similar between vessels, indicating that baseline resistance is largely bulk-controlled.
The slightly higher Bridging Factor in aluminium suggests some sensitivity to wall friction or surface interaction, but this is secondary to cohesion. In practice, this material is more likely to show consistent resistance to movement rather than sudden structural failure, regardless of vessel material.
What it means:
Flow problems are more likely to be cohesion-driven than geometry-driven, and vessel material plays a secondary role.
Granulated sugar
Observation:
- Noticeably higher Cohesion Index in aluminium than glass
- Very large increase in Bridging Factor in aluminium
Explanation:
Granulated sugar is not highly cohesive in a classic "sticky" sense, but it is prone to structural interlocking and force-chain formation due to particle shape and size distribution. These structures interact strongly with the vessel wall.
The aluminium vessel amplifies these effects through higher effective wall friction and mechanical interaction, leading to much stronger arching and irregular resistance. The glass vessel, being smoother and less frictional, suppresses some of this structural instability.
What it means:
Granulated sugar is geometry – and wall-dependent. It may appear acceptable in one hopper or feeder but fail in another depending on wall material and outlet design. Bridging risk is structural, not cohesive.
Plain flour
Observation:
- Cohesion Index and Bridging Factor are very similar in both vessels
Explanation:
Plain flour is a fine powder with moderate cohesion, but its behaviour is dominated by bulk particle-particle interactions rather than strong wall effects. The similarity between glass and aluminium results indicates that resistance to flow is largely independent of boundary material under these conditions.
This suggests that the powder’s behaviour is robust to changes in wall material, and differences in processing performance are more likely to arise from humidity, consolidation, or handling history rather than hopper surface.
What it means:
If flow problems occur, changing vessel or hopper material alone is unlikely to solve them; attention should focus on environment or consolidation.
Sugar soap
Observation:
- Moderate increase in Cohesion Index in aluminium
- Clear increase in Bridging Factor in aluminium
Explanation:
Sugar soap powders often have irregular particle shapes and surface-treated chemistry, making them sensitive to both cohesion and structure. The aluminium vessel enhances near-wall interactions, increasing resistance during lifting and promoting intermittent structural resistance.
The glass vessel reduces these interactions slightly, leading to lower CI and Bridging Factor values. This combination indicates a powder that sits between cohesive and structure-driven behaviour, with performance depending on both material properties and boundary conditions.
What it means:
Sugar soap is boundary-sensitive. Differences between vessels highlight why it may behave inconsistently across different equipment, even if bulk properties appear similar.
Advanced technical information
How to interpret differences between glass and aluminium
|
Observation |
What it indicates |
Practical meaning |
|
Similar results in both vessels |
Bulk-controlled behaviour |
Powder likely robust across equipment materials |
|
CI differs between vessels |
Boundary-sensitive resistance |
Wall material influences flow initiation |
|
Higher CI in aluminium |
Increased wall friction or adhesion |
Metallic surfaces may increase resistance in process |
|
Higher CI in glass |
Electrostatic or surface-energy effects |
Insulating surfaces influence powder behaviour |
|
Bridging Factor changes strongly |
Structure / arching influenced by walls |
Geometry and wall material are critical |
Large differences between vessels are not noise – they are diagnostic.
Which parameters are most sensitive to vessel material?
|
Test parameter |
Sensitivity to vessel material |
Why |
|
Cohesion Index (CI) |
High |
Includes near-wall resistance |
|
Bridging Factor |
Very high |
Structural failure depends on wall interaction |
|
Cohesion (4 Speeds) |
Moderate–High |
Absolute values influenced by boundary effects |
|
PFSD metrics |
Low–Moderate |
Bulk speed response dominates |
|
Caking / Consolidation |
Low |
Load and time dominate |
|
Compressibility |
Very low |
Normal stress response |
|
Bulk Density |
Low |
Mainly preparation-controlled |
Choosing the right vessel – decision guide
Step 1 – What is your goal?
QC / screening / trending
- Use one vessel consistently
- Do not mix vessel materials within a specification
- Aluminium is often preferred for industrial relevance
Process understanding / troubleshooting
- Match vessel material to the real equipment surface where possible
If behaviour is unclear, test in both vessels
Step 2 – Do results change between vessels?
No significant change
- Behaviour is bulk-controlled
- Equipment material is unlikely to be critical
Significant change
- Boundary sensitivity identified
- Wall material, surface finish, humidity or electrostatics may influence process performance
In troubleshooting or scale-up, differences between vessels are valuable information.
Why Cohesion Index can change with vessel material
Cohesion Index measures the work required to mobilise powder. This includes contributions from:
- Particle-particle interactions
- Particle-wall interactions
- Electrostatic effects
- Near-wall shear and rearrangement
It is therefore a system response, not a purely intrinsic bulk property.
For fine or surface-treated powders:
- Glass (insulating) may alter electrostatic behaviour
- Aluminium (conductive) may increase near-wall friction or adhesion
These effects are powder-dependent and often explain why CI differs between vessels.
Bridging Factor is particularly sensitive because structural failure mechanisms – arching and force-chain formation – are strongly influenced by wall properties.
Why Bridging Factor often shows larger vessel effects
Bridging Factor is particularly sensitive to structural instability, such as:
- arching,
- force-chain formation,
- intermittent collapse during movement.
These behaviours are strongly influenced by:
- wall friction,
- surface roughness,
- how force chains terminate at the boundary.
This is why Bridging Factor often shows larger differences between glass and aluminium than Cohesion Index. A powder may not be especially “sticky” (moderate CI) but may still form stable arches that interact strongly with the vessel wall.
In practical terms:
- Differences in Bridging Factor between vessels highlight geometry – and wall-dependent discharge risk.
- Powders showing high Bridging Factor in one vessel are likely to be sensitive to hopper material, liner choice, or outlet design.
Why some powders show differences and others do not
- Powders dominated by bulk cohesion (e.g. fine, uniform powders) tend to show small vessel effects.
- Powders dominated by structure, interlocking, or force chains tend to show large vessel effects, especially in Bridging Factor.
- Powders with mixed behaviour often show moderate differences in both CI and Bridging Factor.
The absence of a vessel effect is just as informative as its presence – it indicates robust, bulk-controlled behaviour.
Can vessel material influence other Powder Flow Analyser tests.
Yes but the magnitude and relevance depend on the test and the dominant failure mechanism.
Tests that are strongly influenced by powder-wall interaction, stress transmission, or electrostatics are more sensitive to vessel material than tests dominated by bulk packing or applied load.
Summary table
|
Test |
Sensitivity to vessel material |
Why |
|
Cohesion (1 speed) |
High |
Strong powder–wall interaction |
|
Cohesion (4 speeds) |
Moderate–high |
Wall effects influence absolute values |
|
PFSD |
Low–moderate |
Bulk speed response dominates |
|
Flow Stability |
Moderate |
Boundary-driven rearrangement possible |
|
Caking |
Low |
Bulk compaction dominates |
|
Consolidation |
Low |
Load- and time-controlled |
|
Compressibility |
Very low |
Normal stress response |
|
Bulk Density |
Low |
Minor electrostatic influence |
Tests that are sensitive to vessel material are revealing powders that are sensitive to their environment – which is exactly where flow problems arise in real processes
Why testing in different vessels adds value
Traditional powder tests often try to eliminate wall effects to produce a single number. The Powder Flow Analyser does the opposite – it reveals when wall effects matter, because real processes are wall-dependent.
Differences between glass and aluminium vessels are not test artefacts. They reveal whether powder behaviour is bulk-controlled or boundary-sensitive, and that distinction has direct practical value.
Testing the same powder in both vessels allows you to:
- Separate intrinsic powder behaviour from equipment-driven effects
- Explain inconsistent plant performance – why a powder works in one hopper but not another
- Identify whether flow problems are more likely to be solved by formulation changes or equipment design
- Make informed decisions about hopper liners, surface finishes, and wall materials
This is particularly valuable during troubleshooting, scale-up, equipment transfer, and the selection of processing surfaces.
If vessel material changes the result, equipment material will matter in the process. That is precisely what you need to know.
|
The Powder Flow Analyser is intentionally sensitive to powder-wall interactions, because real processes are sensitive to them. If changing the vessel material changes the result, that powder is sensitive to boundary conditions – and that is exactly what you need to know. |
Recommended reporting practice
- Clearly state the vessel material used
- Do not average results from different vessels
- When differences are observed, report them explicitly as boundary sensitivity
"Differences between vessel materials indicate sensitivity to particle–wall interactions rather than changes in bulk powder properties."
Practical recommendations
- Be consistent: Always compare data generated using the same vessel material
- Match the process: Where possible, choose the vessel material that best represents the real equipment surface
- Use differences diagnostically: Large changes between vessels can indicate powders that are particularly sensitive to wall effects, electrostatics, or structural arching
This sensitivity can itself be valuable insight.
FAQs
Why test powders in different vessels?
Powder behaviour is influenced not only by particle–particle interactions, but also by particle–wall interactions. Changing the vessel material (e.g. glass vs aluminium) alters surface energy, electrical conductivity, and wall friction — all of which can influence measured flow resistance and failure behaviour.
Testing the same powder in different vessels allows the Powder Flow Analyser to distinguish between:
- Bulk-controlled behaviour (powder behaves consistently regardless of vessel), and
- Boundary-sensitive behaviour (powder response depends on wall material or surface properties).
This provides valuable insight into whether flow problems are likely to be material-intrinsic or equipment-dependent, helping users select appropriate materials, surface finishes, and geometries in real processes.
When should I deliberately test in both vessels?
When troubleshooting inconsistent plant behaviour, evaluating liner materials, or assessing robustness during scale-up.
Does vessel material affect all tests?
No. Cohesion and Bridging Factor are most sensitive; compressibility and consolidation are least.
Should I average results from different vessels?
No. Always report vessel material separately.
