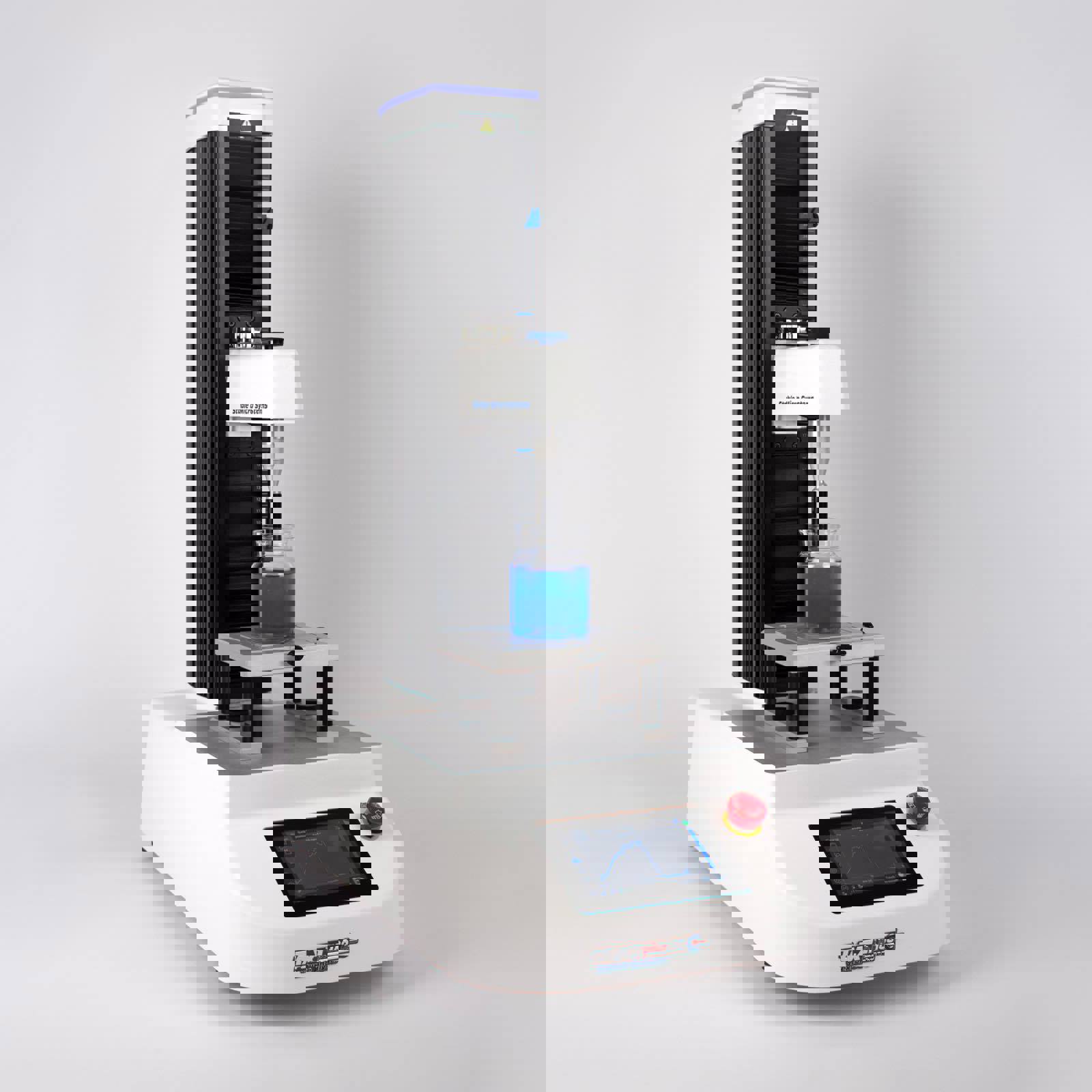

TA.XTplus100C Texture Analyser
Our high force/resolution single column Texture Analyser.
Features of the TA.XTplus100C Texture Analyser
Enhanced capabilities
The TA.XTplus100C Texture Analyser retains the benefits of the TA.XTplusC Texture Analyser, with the additional capability of utilising forces up to 100kg, along with an improved distance resolution, doubled to 0.0005mm but capable of 0.0001mm in Smooth Mode.
This will be of interest to those (particularly in the pharmaceutical industry) who require fine distance control/measurement of, for example, small granules/beads/particles.

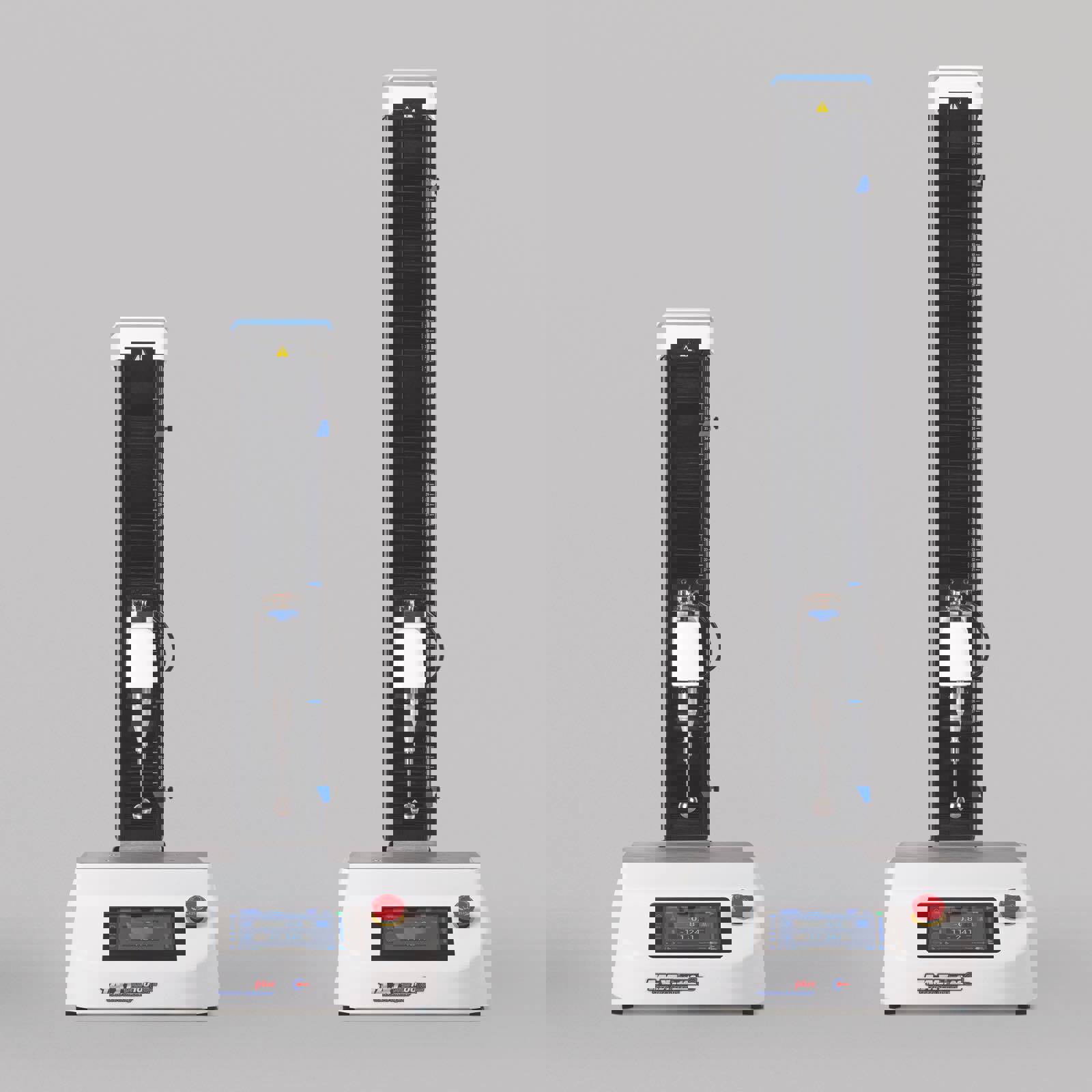

Built for higher force applications
The stiffer structure provides a force capacity to 100kg which enables higher force applications. The extended height model provides even more testing distance for high force extensional applications. With the TA.XTplus100C Texture Analyser you get more capacity for the same laboratory bench space (footprint).
Integral control panel or run on any device
All Stable Micro Systems Connect series Texture Analysers are capable of operation by an integral touchscreen control panel as well as by a desktop or laptop PC. In addition, they may also be operated from a mobile phone or tablet using the Browser Interface. Learn more
Touch To Move mode
Optional movement of the arm by the ‘Touch To Move’ method allows pushing/pulling on the calibration platform. This function is responsive enough for quick positioning as well as fine adjustments. Apply greater force to achieve faster motion.
Instrument/test status lights
See the status of your test from elsewhere in the lab. Whether its blue for on, yellow to indicate the arm is moving, green to show its collecting data or red to show a warning status.
Operate in 24 languages
Languages supported: English, Chinese (CN and TW), Czech, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Lithuanian, Polish, Portugese (PT and BR), Romanian, Russian, Serbian, Spanish, Thai, Turkish, Vietnamese.
Operate from a mobile device
Connect via QR code on the same network and go. The Texture Analyser can then be controlled through the browser interface.
Weighing Pan
The Weighing Pan (optional) attaches to the calibration platform and gives precise measurement of a sample.
More attachment options
With the TA.XTplus100C Texture Analyser you have the ability to use attachments including the Ottawa Cell and Kramer Shear Cell that would usually require the high force capacity of a TA.HDplusC Texture Analyser.
Additional measurement options
More location points for the attachment of accessories such as temperature devices, lights, humidity probe, cameras etc.
Built to last
Coupled with easy-to-use Exponent Connect software, this versatile instrument is extraordinarily well-engineered for long-term reliability and accuracy.
Technical specification
Force capacity
100kg.f (1kN)
Force resolution
0.1g
Load Cells
0.5, 5, 10, 30, 50, 100kg.f
Speed range
0.01 – 20mm/s
Maximum aperture
350mm/600mm
Distance resolution
0.0005mm (0.0001mm in Smooth Mode)
Data acquisition rate
2000pps
Not sure what specification or model you need? Compare Texture Analysers
